$1,114.91

JL Audio (2) 8W3v3 and JD500/1 8 Inch Subwoofer Kit

JL Audio (2) 8W3v3 and JD500/1 8 Inch Subwoofer Kit
Includes:
  • (2) JL Audio 8W3v3 8" Subwoofers
  • JL Audio JD500/1 500W Mono Amplifier
  • Option to upgrade the Amplifier
  • 4 AWG Amp Wiring Kit
  • 15 ft. of 12 AWG Speaker Wire
Processing...
Item #: 8W3v3x2-JD500-1
$1,114.91
Amplifier:
Radio Extended Warranty Coverage starts after the included 2-year warranty
Out of Stock
Free Shipping
Description

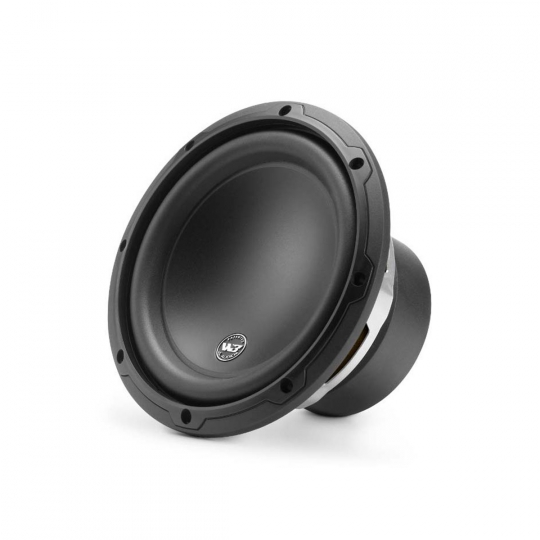

JL Audio 8W3v3 8" 4-ohm Subwoofer

The 8W3v3-4 is the 4 Ohm version of JL Audio's 8" subwoofer model and falls under the W3 series line that features an improvement in construction materials over both the W0 and W1 series with a Mineral-filled polypropylene cone with a rubber surround. If you're looking for a subwoofer that hits hard and sounds good, search no further than JL Audio's W3 series line of subwoofers.

Although it measures in at 8", 8W3v3-4 is a true subwoofer, through-and-through. It employs the same technologies as its larger brethren in the W3 series to deliver the hard-hitting bass and durability JL Audio is known for.

The 8W3v3-4 model comes in a single, 4 Ohm voice coil. We recommend powering the 8W3v3-4 with a 250 watt JL Audio amplifier. If you are only running 1 subwoofer, be sure to look at the amplifier output at 4 ohms, not just the number that the amp is rated at when completing your setup.

The 8W1v3-4 8" subwoofer is optimized to operate in a tiny 0.30 cubic feet (8.5 liter) sealed enclosure, or a 0.35 cubic feet (9.9 liter) ported enclosure.

JL Audio JD500/1 500W Mono Amplifier

The JL Audio JD500/1D delivers raw JL power in a compact, efficient, Class D amplifier. The 500 watt monoblack amplifier is perfect for powering your 1 or 2 subwoofers and is stable down to 2 ohms. You get 500 watts of power at 2 ohms, 350 watts RMS at 3 ohms, and 250W RMS at 4 ohms. The JD 500/1 uses JL's NexD switching technology for maximum efficiency and minimal distortion. These JD amplifers now feature an LED clipping indicator which allows you to set the gain perfectly without a clipped input or output signal. You will know exactly where your head unit clips to eliminiate input distoration. In addition, the LED clipping indicator allows you to set the gain to the perfect level so you do not get a clipped signal on the output. Together, this ensures maximum life out of your subwoofer(s) by eliminating harmful distortion, the number one reason why subwoofers blow.

The JD500/1 has a 12dB/octave low pass filter and variable frequency selection between 50-500hz. The JD500/1 accepts both high and low level inputs allowing you to use RCA cables or speaker level inputs.

If you need to power your subwoofers, you are looking for a JL amplifier, but you are on a budget, the JD500/1 is the perfect amp to give you 500 watts of output at 2 ohms. There's nothing like JL Audio amplifiers and the JD lives up to the repuation while maintaining an affordable price point.


Components
JL Audio 8W3v3-2
JL Audio 8 Inch W3 subwoofer
Recommended RMS Power Handling
75-250W
Voice Coil
Single 4 Ω
Optimal Enclosure (Sealed)
.3 cu. ft.
Optimal Enclosure (Ported)
.35 cu. ft.
Mounting Depth
4.63" (118mm)
Mounting Hole Diameter
7.09" (180mm)
JL Audio JD500/1
Power Rating
250W x 1 @ 4 Ohms
350W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
10 Hz- 150 Hz (+0, -1dB)
Features
LED Clipping Indicators
Accepts High and Low Level Inputs
Low Pass Filter
12 db/octave Filter Slope
0 to +12 db Bass Boost @ 45 Hz
Optional Bass Knob (RBC-1) Sold Separately
7.83" (L) x 7.68" (W) x 2.09" (H)
Upgrade Options
JL Audio RD500/1
Power Rating
250W x 1 @ 4 Ohms
350W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
7 Hz- 500 Hz (+0, -1dB)
Features
LED Clipping Indicator
Better Thermals & Actual Power Output vs. JD Series
Accepts High and Low Level Inputs
Low Pass Filter
12 db/octave Filter Slope
Optional Bass Knob (RBC-1)
9.78" (L) x 6.96" (W) x 2.12" (H)
JL Audio XD600/1v2
Power Rating
400W x 1 @ 4 Ohms
500W x 1 @ 3 Ohms
600W x 1 @ 2 Ohms
Frequency Response
7 Hz- 500 Hz (+0, -1dB)
Features
Better Thermals & Actual Power Output vs. JD & RD Series
Accepts High and Low Level Inputs
Low Pass Filter
12/24 db/octave Filter Slope
Optional Bass Knob (HD-RLC)
7.09" (L) x 6.85" (W) x 2.05" (H)
The "Go-to" Amps Among JL Pros

California Prop 65 Warning:
California Prop 65 Warning. Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
