$537.92

JL Audio 10" W0 CP110-W0v3 with JD500/1 500 Watt 10 Inch Subwoofer Kit

JL Audio 10" W0 CP110-W0v3 with JD500/1 500 Watt 10 Inch Subwoofer Kit
Includes:
  • (1) JL Audio CP110-W0v3 10" W0 Loaded Enclosure
  • (1) JL Audio JD500/1 500W Mono Amplifier
  • (1) 4 AWG Amp Wiring Kit
  • 15 ft. of 12 AWG Speaker Wire
Processing...
Item #: CP110-W0v3-SK
$614.92 $537.92
Amplifier:
Add a Bass Knob:
Radio Extended Warranty Coverage starts after the included 2-year warranty
Out of Stock
Free Shipping
Description

JL Audio 10 Inch W0 Loaded Enclosure Subwoofer Kit

Our JL Audio CP110-W0v3 and JD500/1 subwoofer package gives you everything you the core components to add some bass to your vehicle. This kit includes the loaded enclosure, the amplifier, a 4 AWG amp wiring kit with an RCA cable, and speaker wire.

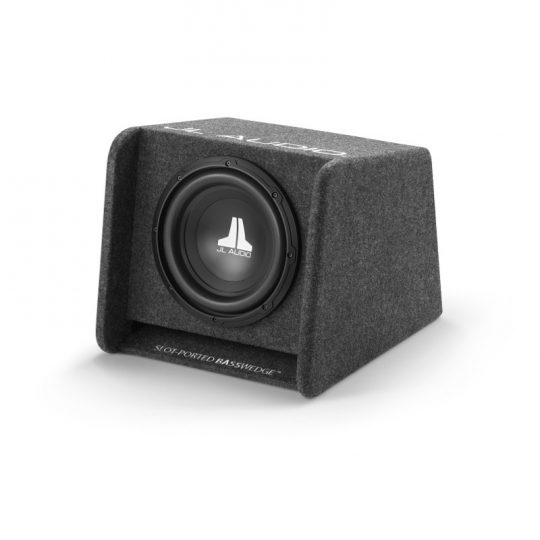

JL Audio 10 Inch W0v3 Loaded Enclosure

The 10" JL Audio subwoofer comes in a ported enclosure that has been designed, engineered, and optimized by the team of engineers at JL Audio. The W0 subwoofer handles 300 watts RMS, has a single 4 ohm voice coil, and is the gold standard for an entry-level subwoofer. The CP110-W0v3 hits hard and clean at an affordable price point.

JL Audio JD500/1 with 250 Watts RMS at 4 Ohms

It is important to note that while the amplifier is a "500 watt amp", it will only be putting out 250 watts RMS to the subwoofer. Since the JL Audio W0 subwoofers are only available with single 4 Ohm voice coils, it is important that you look at the 4 ohm power rating of the amplifier, not just what the amplifier says it is. It is a 500 watt amplifier, but the amplifier is putting out 500 watts at 2 ohms. With this kit, we are wiring to a 4 ohm load.

The JL Audio JD500/1 is 500 watt, mono amplifier from their entry level, JD series amplifiers. The JD series uses many of the same technologies as the higher-end amplifiers and delivers value at an affordable price point. The JD500/1 uses the same NexD switching technology used in the RD and XD series amplifiers and has LED clipping indicators for both the input and the output. The helps you set the gains perfectly to eliminate distortion and extend the life of both your amplifier and subwoofer. The JD500/1 amplifier is rated at 500 watts at 2 ohms and 250 watts at 4 ohms.

4 AWG Amp Wiring Kit + Speaker Wire Included

To connect everything together we include a 4 AWG amp wiring kit with an RCA cable and 15 feet of 12 AWG speaker wire. The wire is 100% oxygen-free copper to ensure that your amplifier and subwoofer get all of the power they need. This wire is not the cheap, copper-coated aluminum junk. This is the good stuff

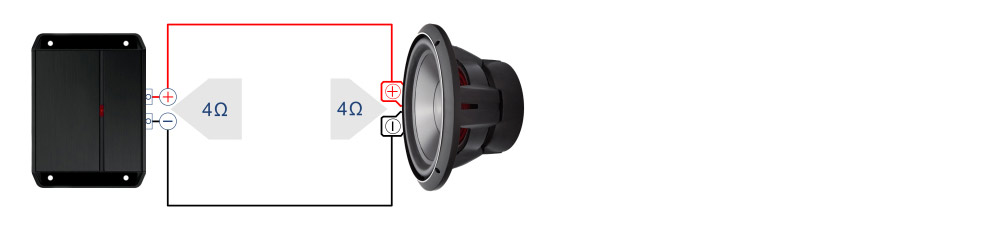

Straightforward Wiring to a 4 Ohm Load

Wiring a 4 Ohm Subwoofer to a 4 Ohm Load

Add a Bass Knob for Quick & Easy Adjustments

We recommend adding a bass knob to quickly and easily adjust the bass level. No two songs are recorded the exact same. Some songs have a ton of bass while others have no bass. With a bass knob, you can quickly adjust the subwoofer output up or down to your liking without having the fumble with your radio. This not only provides a better listening experience but it also protects your investment. If a song has "too much bass" you can quickly turn it down to prevent your subwoofers from distorting.

The bass knob for the JD and RD amplifiers is different from the bass knob used with the XD amps.

  • JD & RD = JL Audio RBC-1
  • XD = JL Audio - HD-RLC

Components
JL Audio CP110-W0v3
Recommended RMS Power Handling
75-300W
Subwoofer Included
10W0v3-4
Wired Impedance
Enclosure Style
Ported
Dimensions
Width: 15.51"
Height: 13.77"
Top Depth: 14"
Bottom Depth: 17.38"
Grille Included
No
JL Audio JD500/1
Power Rating
250W x 1 @ 4 Ohms
350W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
10 Hz- 150 Hz (+0, -1dB)
Features
LED Clipping Indicators
Accepts High and Low Level Inputs
Low Pass Filter
12 db/octave Filter Slope
0 to +12 db Bass Boost @ 45 Hz
Optional Bass Knob (RBC-1) Sold Separately
7.83" (L) x 7.68" (W) x 2.09" (H)
Upgrade Options
JL Audio RD500/1
Power Rating
250W x 1 @ 4 Ohms
350W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
7 Hz- 500 Hz (+0, -1dB)
Features
LED Clipping Indicator
Better Thermals & Actual Power Output vs. JD Series
Accepts High and Low Level Inputs
Low Pass Filter
12 db/octave Filter Slope
Optional Bass Knob (RBC-1)
9.78" (L) x 6.96" (W) x 2.12" (H)
JL Audio XD300/1v2
Power Rating
200W x 1 @ 4 Ohms
250W x 1 @ 3 Ohms
300W x 1 @ 2 Ohms
Frequency Response
10 Hz- 1000 Hz (+0, -1dB)
Features
Better Thermals & Actual Power Output vs. JX & RD Series
Accepts High and Low Level Inputs
Low Pass Filter
12/24 db/octave Filter Slope
Optional Bass Knob (HD-RLC)
7.09" (L) x 6.85" (W) x 2.05" (H)
