$1,087.92

JL Audio 10" TW3 CS110LG-TW3 TW3 Subwoofer Kit

JL Audio 10" TW3 CS110LG-TW3 TW3 Subwoofer Kit
Includes:
  • (1) JL Audio CS110LG-TW3 10" TW3 Loaded Enclosure
  • (1) JL Audio Mono Amplifier (Select Model Above)
  • (1) Amp Wiring Kit
  • 15 ft. of 12 AWG Speaker Wire
Processing...
Item #: CS110LG-TW3-SK
$1,164.92 $1,087.92
Amplifier:
Radio Extended Warranty Coverage starts after the included 2-year warranty
Out of Stock
Free Shipping
Description

This kit includes the JL Audio CS110LG-TW3 10 inch TW3 loaded enclosure and your chocie of JL Audio monoblock amplifier.

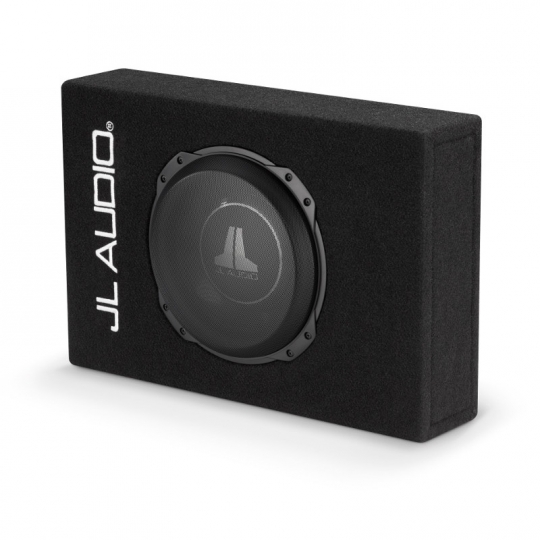

JL Audio CS110LG-TW3 10 Inch TW3 Loaded Subwoofer Enclosure

The CS110LG-TW3 is a loaded enclosure with a 10" TW3 subwoofer that has been wired to a 2 ohm load. The 10" TW3 subwoofer handles 400 watts RMS and has dual, 4 ohm voice coils. The sealed enclosure has a very low profile design with a depth of only 4.5 inches. The sealed enclosure is designed and optimized by the team at JL Audio for maximum performance from the TW3 subwoofer.

The TW3 subwoofers are among the best low-profile subwoofers you can buy. The output of these subwoofer is similar to the full-size W3, but the low-profile design provides much more installation flexibility. Many "shallow" subwoofers available for cars sound shallow. The JL Audio TW3 is one of the exceptions and delivers serious sub-bass output without sounding shallow. The CS110LG-TW3 comes covered with high-quality, black carpet with "JL Audio" embroidery and a subwoofer grille pre-installed.

JL Audio Amplifier Options

This kit includes your choice of JL Audio monoblock amplifier. All of the amplifier options will provide plenty of power for the TW3 subwoofer. Make sure if you select a 500+ watt amplifier that you do not turn the gain all the way up. Doing so will send too much power to the subwoofer and you may void your warranty.

  • JD500/1 - This is the lowest cost amplifier that we recommend to power the TW3 subwoofer.

  • RD500/1 - The JL Audio RD500/1 is a nice middle ground that will deliver more power and cleaner power than the JD500/1 and it delivers more RMS power than the XD300/1v2 with a lower price point

  • XD300/1v2 - This is the "go-to" amp among the JL Audio pros, but it's pricey and power is power is power when it comes to subwoofers. For the money, we like the RD500/1 a little better.

  • MX500/1 - The MX500/1 is an compact chassis, class D amplifier that is designed for applications that are very limited on space.
  • XD600/1v2 - This is by far the "Best" option, but it's alot of amp for a single TW3 subwoofer. If you don't care about the price and you would rather have more amp than you need, but keep the gain turned down, this is the best choice. It's just pricey for this application.

If you scroll down the page, we have charts which break down the different amplifier options and show the power output of the different models along with some other highlighted features.

Amp Kit and Speaker Wire Included

This JL Audio TW3 loaded enclosure subwoofer kit comes with an amp wiring kit, an RCA cable, and 15 feet of 12 AWG speaker wire. The wire in the amp kit and the speaker wire is 100% oxygen-free copper. We use only the good stuff. It doesn't make sense to spend the money for quality products like JL Audio subs and amps and then cheap out on the wire. The oxygen-free copper ensures maximum power output from your amplifier and bass output from your subwoofer. Don't settle for the cheap stuff.


Components
JL Audio CS110LG-TW3
Recommended RMS Power Handling
100-400W
Subwoofer Included
10TW3-D4
Wired Impedance
Dimensions
20.75" x 14" x 4.5"
Grille Included
Yes
JL Audio JD500/1
Power Rating
250W x 1 @ 4 Ohms
350W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
10 Hz- 150 Hz (+0, -1dB)
Features
LED Clipping Indicators
Accepts High and Low Level Inputs
Low Pass Filter
12 db/octave Filter Slope
0 to +12 db Bass Boost @ 45 Hz
Optional Bass Knob (RBC-1) Sold Separately
7.83" (L) x 7.68" (W) x 2.09" (H)
Other Amplifier Options
JL Audio RD500/1
Power Rating
250W x 1 @ 4 Ohms
350W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
7 Hz- 500 Hz (+0, -1dB)
Features
LED Clipping Indicator
Better Thermals & Actual Power Output vs. JD Series
Accepts High and Low Level Inputs
Low Pass Filter
12 db/octave Filter Slope
Optional Bass Knob (RBC-1)
9.78" (L) x 6.96" (W) x 2.12" (H)
JL Audio XD300/1v2
Power Rating
200W x 1 @ 4 Ohms
250W x 1 @ 3 Ohms
300W x 1 @ 2 Ohms
Frequency Response
10 Hz- 1000 Hz (+0, -1dB)
Features
Better Thermals & Actual Power Output vs. JX & RD Series
Accepts High and Low Level Inputs
Low Pass Filter
12/24 db/octave Filter Slope
Optional Bass Knob (HD-RLC)
7.09" (L) x 6.85" (W) x 2.05" (H)

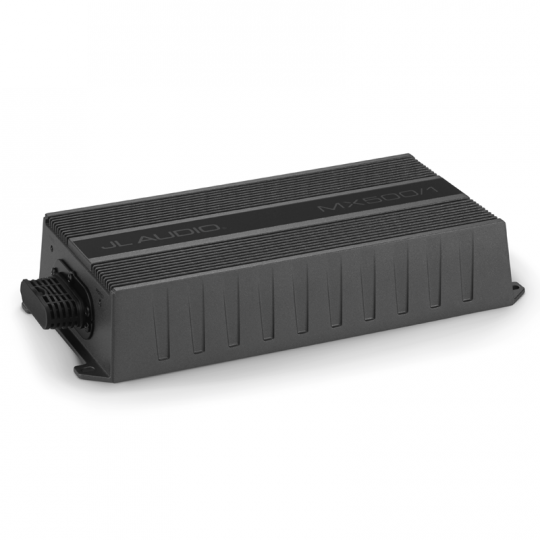

JL Audio MX500/1
Power Rating
300W x 1 @ 4 Ohms
400W x 1 @ 3 Ohms
500W x 1 @ 2 Ohms
Frequency Response
20 Hz- 12 kHz (+0, -1dB)
Features
Very Small Footprint
Accepts High and Low Level Inputs
Low Pass Filter
24 db/octave Filter Slope
Optional Bass Knob (RBC-1)
9.33" (L) x 4.5" (W) x 1.77" (H)
JL Audio XD600/1v2
Power Rating
400W x 1 @ 4 Ohms
500W x 1 @ 3 Ohms
600W x 1 @ 2 Ohms
Frequency Response
7 Hz- 500 Hz (+0, -1dB)
Features
Better Thermals & Actual Power Output vs. JD & RD Series
Accepts High and Low Level Inputs
Low Pass Filter
12/24 db/octave Filter Slope
Optional Bass Knob (HD-RLC)
7.09" (L) x 6.85" (W) x 2.05" (H)
The "Go-to" Amps Among JL Pros
The JD500/1 will do the trick at an affordable price point. If you want to step up, we like the RD500/1. The XD amps are incredible, but hard to justify the price for a 400W subwoofer.
