1970-1972 Cutlass Radio, USA-230

1970-1972 Cutlass Radio, USA-230
Key Features:
  • AM/FM Radio with Aux Input in Rear
  • Fits in Original Dash Location
  • Backed By A 2 Year Warranty
Processing...
Code:CAM-CUT-70_2-230

$169.95

Add Aux. Input Bluetooth Adapter:
Add Dash Speaker:
Add Powered Subwoofer:

Qty
Qualifies for Free Shipping!

Shipping Methods

We ship via FedEx (Ground, Next Day, 2nd Day, etc.). Shipping costs and options are listed when you check out. You will be notified via e-mail (providing you supplied a valid e-mail address that is not blocked or filtered) when your order has shipped. Once your order has been shipped, a tracking number will be e-mailed to you.

CREDIT CARD ORDERS CAN ONLY BE SHIPPED TO THE BILLING ADDRESS of the credit card for all first time orders. After 30 days of the first order being shipped and received, we can ship to other locations, such as your place of work provided you are using the same credit card as your first order.

Shipping Time

All orders are shipped and delivered on business days only (Monday-Friday). For instance, if you were to place an order for Next Day Air on a Friday before the shipping cut off, the package would be delivered the next business day which would be Monday. If you order AFTER the cut off time on Friday, the order would be shipped Next Day Air on Monday, and be delivered on Tuesday.

If your selection is not a stock item for either us or the factory, it will have to be SPECIAL ORDERED. Please allow 14-21 days for special order items to be produced. If you order other items with one special order item, we will ship the in stock items as soon as your order is placed.

Note: If you order a special order item, and choose Next Day Air or another expedited service, the item will be shipped out Next Day Air or otherwise, AFTER the 2-3 week production time.

Where We Don't Ship

We do not ship internationally. We only ship within the United States and its territories.

Product Description

The USA-230 is our most popular classic car radio. It has the exact same appearance as the USA-630, but it does not come with the USB port for a flash drive or the CD changer control. This classic car radio allows you to listen to AM/FM radio or plug in your iPod or satellite radio tuner. The USA-230 comes with the RCA to Mini Stereo (1/8" pin) cable so no other parts are needed to connect to your external music source.

Our USA-230 Classic Car Radio has the following features:
  • AM-FM Stereo
  • 200 Watts (4 x 50)
  • Electronic Tuning & Volume Control
  • 4 way fader
  • L/R Balance
  • Digital Clock
  • 2 Channel RCA Aux Input for iPod or Satellite Radio Tuner
  • 12 FM and 4 AM Presets
  • 4 Channel RCA Pre-outs for an external amplifier
  • Bass & Treble Controls
  • Power Antenna Lead

All of our radios are custom "kitted" to fit the specific vehicle listed above. The images are the closest representation of what the radio looks like. There may be some slight variation but the radio will fit the vehicle listed above.

FAQ's

Frequently Asked Questions

Does the radio come with a bezel?

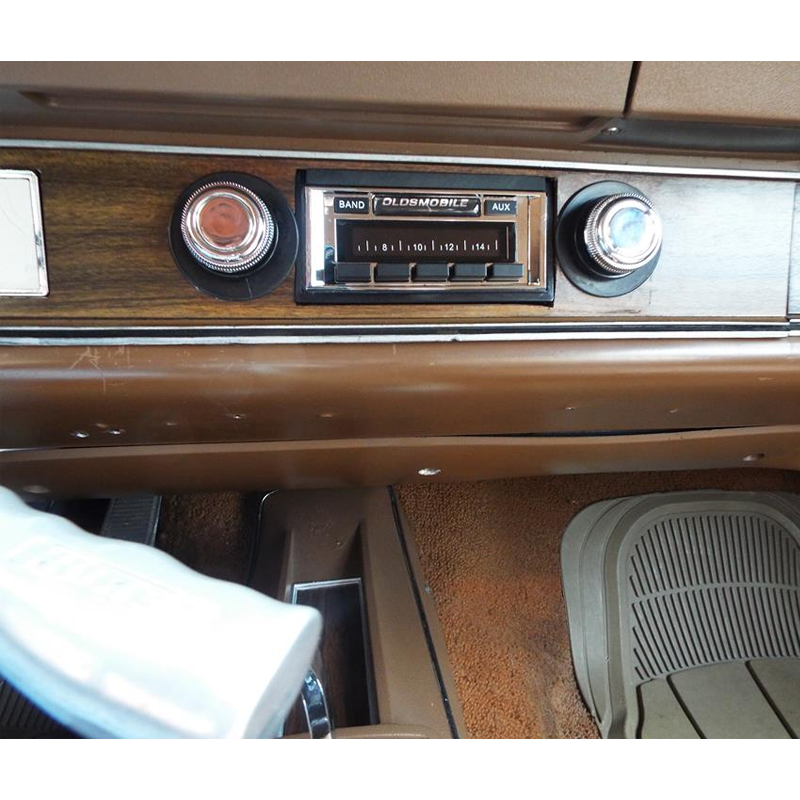

No, the radio does not come with a bezel. It installs from behind the dash and the picture shows the radio installed in the dash.

Does the radio come with a harness?
All radios come with a new wiring harness that you will need to splice and connect to your vehicle's electrical system.

Can I use my Original Knobs?
Original radios were "D" shafts and our radios are split shaft. To make the originals work you need to remove the insert and installa piece of metal for the split shaft.

Where are the Auxiliary Input, USB Port and iPod Connections?
The RCA auxiliary input, USB port and iPod connections are on the back of the radio to maintain the classic styling on the face of the radio.

How Deep is the Radio Itself?
The USA-230 and USA-630 require 6.5" of mounting depth, while the USA-1 requires 7".

Can I use my iPhone to connect to the iPod Connection?
The iPod connection comes with the classic iPod, 30 pin connector. The direct iPod connection does not work with iPhone or iPod touch. If you have an iPhone, we recommend the BluKit for Bluetooth connectivity or you need to use the RCA auxiliary input that plugs into the headphone jack of your iPhone.

Wiring Info

Wiring Diagram for 1970-1972 Cutlass Radio, USA-230

Videos

Warranty Info

All Custom Autosound Radios are backed by a 2 year warranty from the manufacturer. All radios are tested before being boxed and sent to ensure that they are working properly. In addition, we at Classic Car Stereos will work with you to fix any issue as quickly and as seemlessly as possible. We strive for 100% customer satisfaction.
